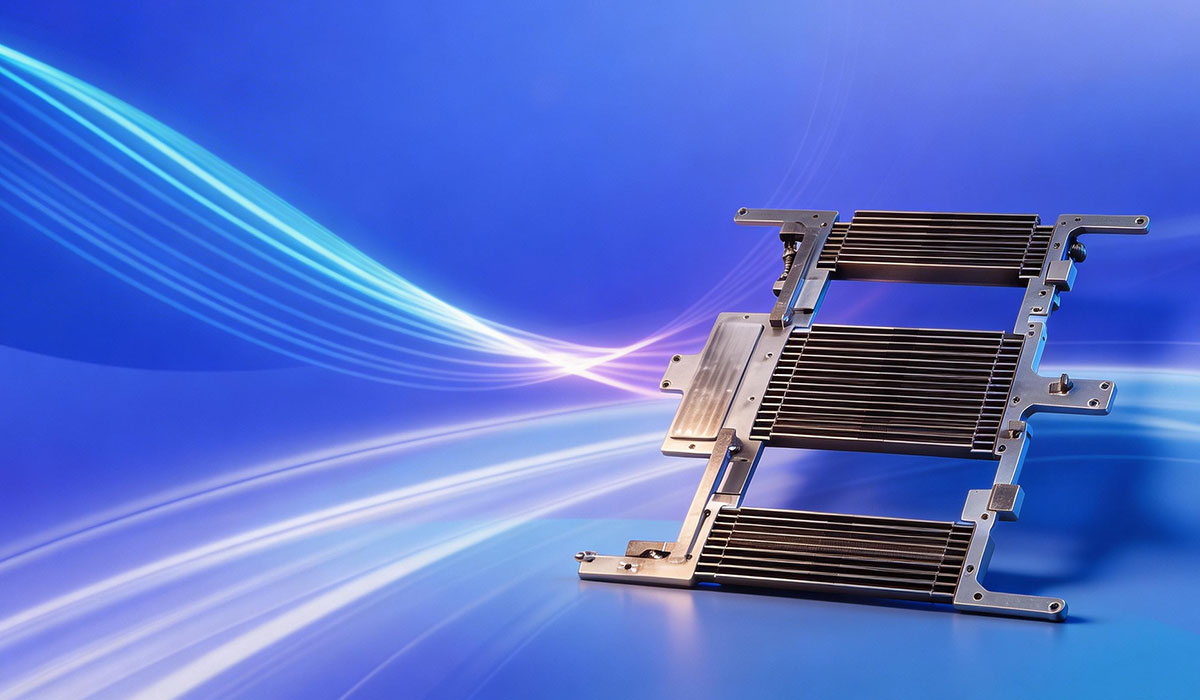

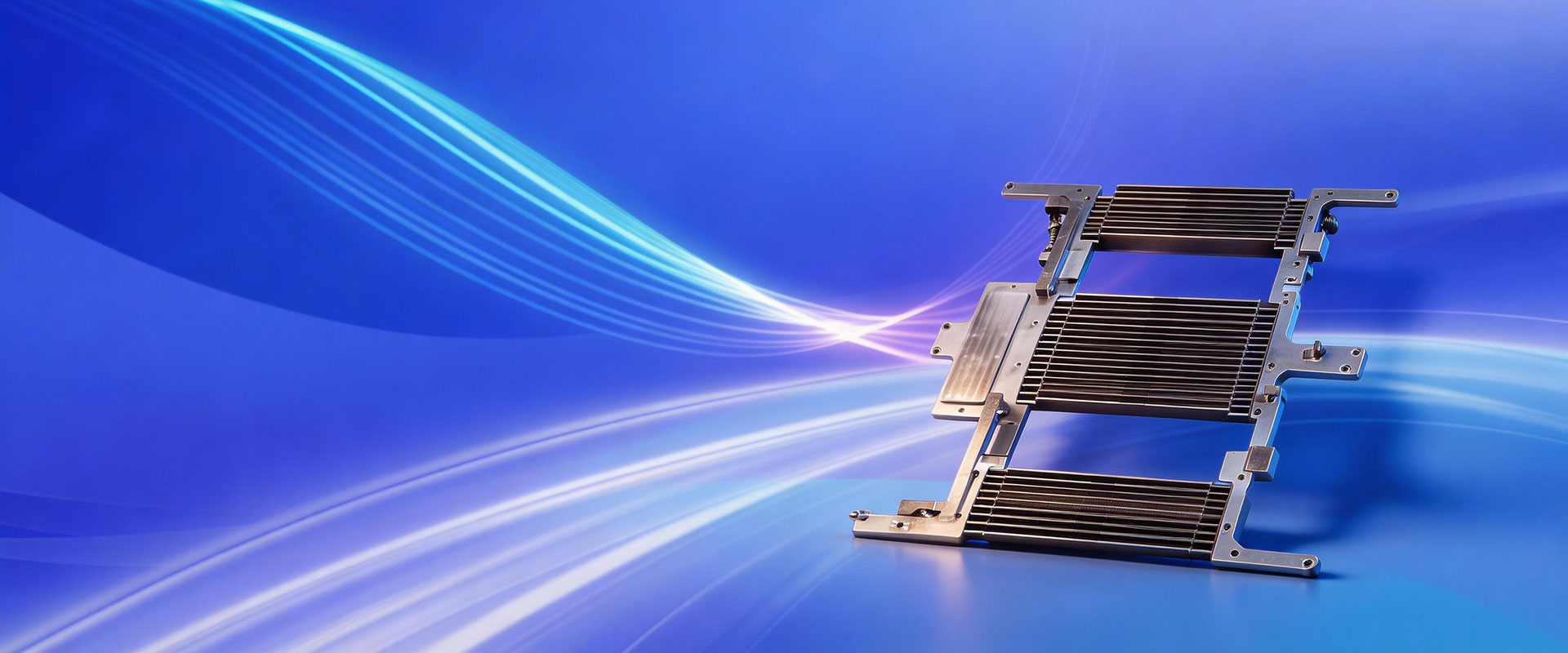

DIMM Liquid Cooling Product
(all liquid solution)
Interface Material:
High compression ratio, high thermal conductivity, and resistance to plugging and unplugging.
All Liquid Cooling Loop:
Robust performance to meet the cooling requirements of high-power DlMMMs.
Stainless Steel Liquid-cooled Cold Plate:
Solves the issue of cold plate deformation caused by DlMM insertion and removal.
| Key Parameters | Parameter Description | ||
| Dimensions | 2U | ||
| Coolant | DI water, PG25 | ||
| Inlet Temperature | 45 ℃ | ||
| Flow Rate | 1.5 LPM | ||
| Pressure Drop | ≤ 27.4 kPa | ||
| DIMM Power Consumption | 43 W | ||
| DIMM Tcase | 56～58 ℃ | ||
| Quick Connector | UQD04 Socket | ||
|
Note: Performance may vary depending on operating conditions. For data not listed, please contact TeraCule. |
|||
