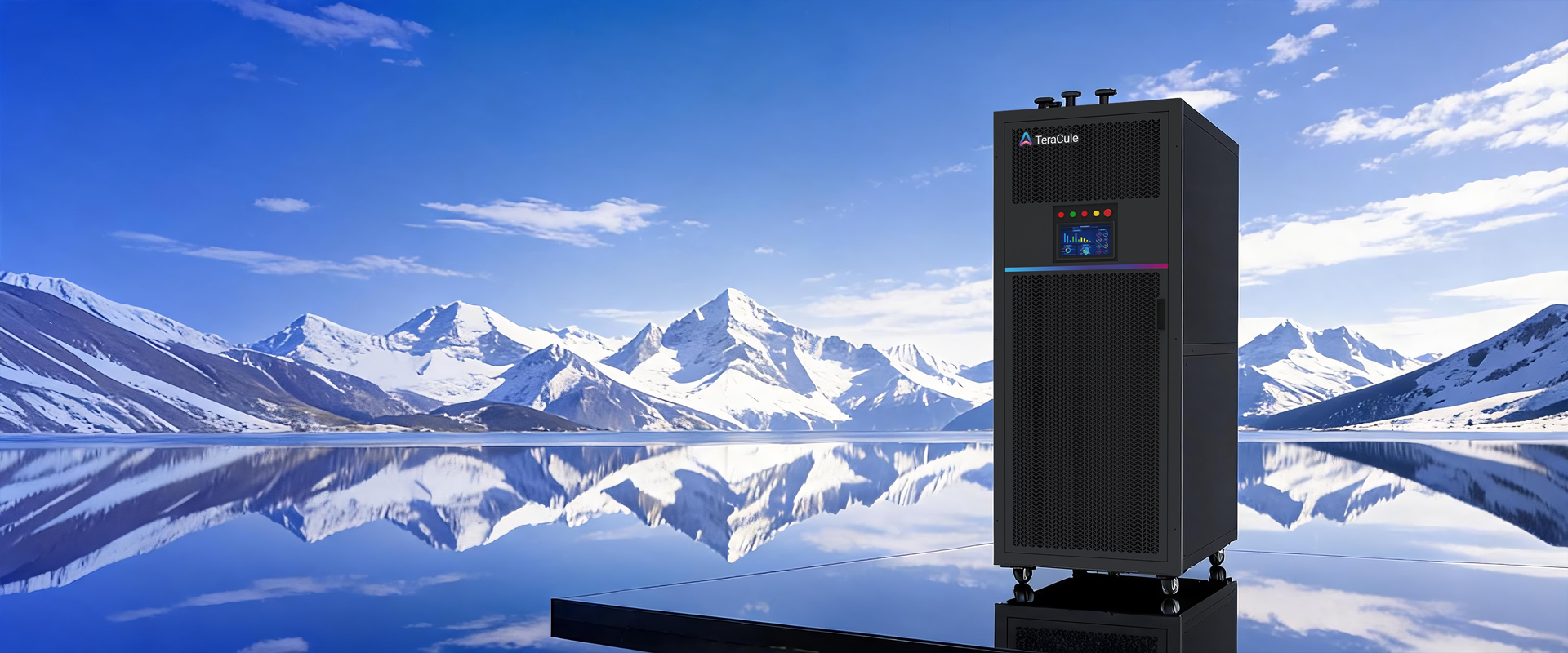

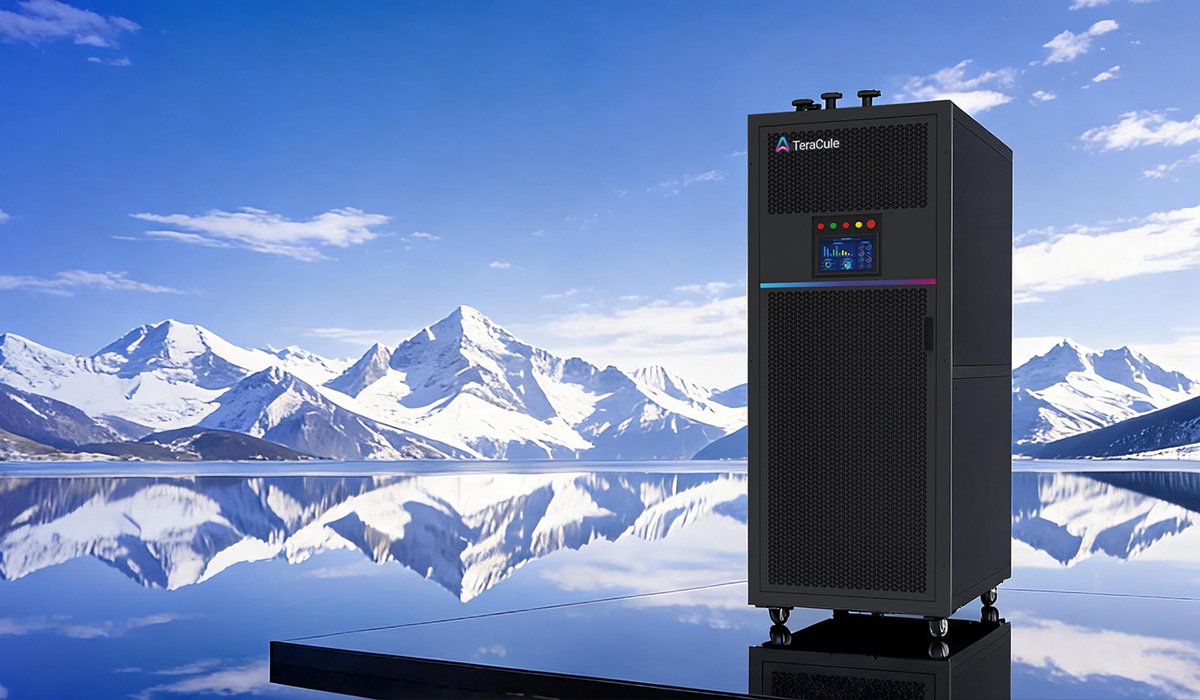

The 50 kW Chiller is a closed-loop cooling system designed to provide precise coolant temperature, flow, and pressure through a vapor-compression refrigeration cycle. Available in both air-cooled and watercooled configurations, it delivers reliable thermal management for equipment testing applications.

THDV < 5% under rated operating conditions.

THDI < 5% under rated operating conditions.

Compliant with RoHS standards.

Supports both air-cooled and liquid-cooled heat rejection.

Technical Specifications

Specification Chiller
Rated Cooling Capacity 50 kW
Dimensions (W × D × H, mm) W800 × D1200 × H2000 (excluding casters and top piping)
Flow Rate 20–140 L/min, accuracy ±0.5 L/min
Coolant Supply Temperature 10–25°C (adjustable), accuracy ±0.5°C
Communication Protocol Modbus TCP/RTU
Primary-Side Heat Rejection Air-cooled, compatible with liquid-cooled systems
Input Voltage 380 V / 50 Hz
Power Consumption 23 kW

Note: Performance may vary depending on operating conditions. For data not listed, please contact TeraCule.
